Major Overhaul Kit, Becker, U Series, U4.100D, Part# 33801400-D0 – vacstellar

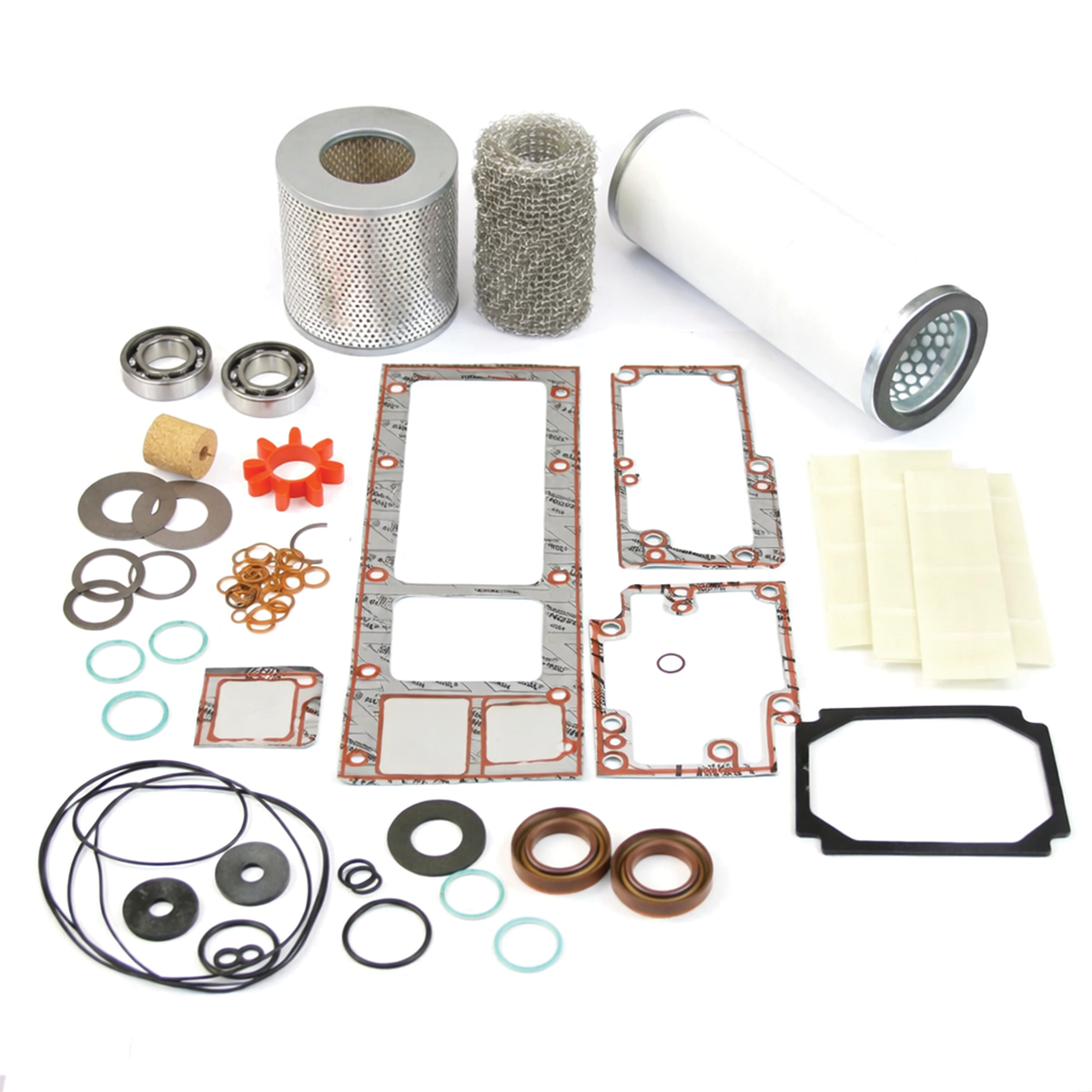

The Major Overhaul Kit (Part #33801400-D0) is made for the Becker U Series U4.100D model. Think of it as a “rebuild in a box.” It contains over 30 different parts. Every single component is made to Becker’s original specifications.

Let me tell you what you will find inside:

The Important Moving Parts

• 3 Vanes (Part #90051200000): These slide in and out to create the vacuum. Old vanes wear down and lose their seal. New vanes restore full pumping power.

• 2 Ball Bearings (Part #90662200000): These keep the rotor spinning smooth and quiet. Worn bearings cause noise and vibration.

• 2 Shaft Seals (Part #90656000000): These stop oil from leaking out where the shaft comes out of the pump. Made of Viton rubber for a long life.

  All The Seals and Gaskets
  The kit includes every O-ring and sealing ring you will need. Copper sealing rings. Fiber gaskets. Buna O-rings. Viton O-rings. There is even a special oil tank cover gasket and a cover gasket. You will not have to reuse a single old seal.

  The Filters

  • 1 Exhaust Filter (Part #96541600000): Cleans the air before it leaves the pump.

  • 1 Coarse Separator (Part #50600026200): Catches larger particles and oil mist.

  • 1 Filter Cartridge (Part #84040207000): The main filter element for the U4.100D.

  Other Important Parts
  The kit also comes with a spider coupling (the rubber part that connects the motor to the pump), a float assembly for the oil return system, and several valve washers.

  Part Number	Description	Quantity	Qty in stock
  91311650100	O-ring, 34.52 x 3.53mm (AS568-220) – Viton, Part# 91311650100	1	11
  94802100000	Sealing ring, Becker, U Series, Part# 94802100000	2	54
  420041	Valve Washer, Becker, U Series, Part# 420041	1	12
  94801300000	Sealing ring, Aluminium, Becker, U Series, U4.70D, U4.70E, Part# 94801300000	1	51
  94803000000	Sealing ring, Copper-Becker U Series, Part# 94803000000	5	20
  94800200000	Sealing ring, Copper – Part# 94800200000	7	108
  94802300000	Sealing ring, Copper- Becker U Series, Part# 94802300000	8	38
  90051200000	Becker Vane – GX, Part# 90051200000	3	7
  91760900000	Sealing Ring Becker, U Series, U4.70D, U4.70E, U4.70F, U4.70G, U4.70H, U4.70, U4.100D, U4.100F, U4.100, Part# 91760900000	2	93
  91750100000	Distance Disc, Becker, U Series, U4.70D, U4.70E, Part# 91750100000	2	10
  90656000000	Shaft Seal, Viton – 28 x 47 x 10 mm, Becker, U Series, Part# 90656000000	2	3
  90662200000	Ball Bearing, 6206, Becker, U Series, Part# 90661140000	2	3
  90220010600	Spider Coupling, Rotex GR24, Becker, U Series, Part# 90220010600	1	6
  96541600000	Exhaust Filter, Becker U Series – Part # 96541600000	1	0
  50600026200	Coarse Separator, Becker, U Series, Part# 50600026200	1	9
  84040207000	Filter Cartridge, Becker, U Series, U4.100D, U4.100F, Part# 84040207000	1	8
  86780099559	Float Assembly, Becker, U Series, Part# 86780099559	1	12
  91311560100	O-ring, 11 x 1.5mm – Viton, Part# 91311560100	2	28
  91311570100	O-ring, 126.72 x 1.78 mm – Viton, Part# 91311570100	2	23
  63070010700	Washer, Valve, Becker, U Series, Part# 63070010700	2	30
  03070018700	Valve Washer, Copper	2	8
  91311900000	O-ring, 70 x 3.0 mm – Buna, Part# 91311900000	1	26
  94802900000	Sealing ring, Fiber, Becker, U Series, Part# 94802900000	1	36
  00700026200	Oil Tank Cover Gasket, Becker, U Series, U4.70D, U4.70E, U4.70F, U4.70G, U4.70H, U4.70, U4.100D, U4.100F, U4.100, U4.100G, U4.100H, Part# 700026200	1	6
  91311670100	O-ring, 26 x 2 mm – Viton, Part# 91311670100	2	23
  300085	Sealing ring, Fiber, 31.8 x 27 x 1.9 mm, Becker, U Series, Part# 300085	2	51
  300086	Sealing ring, Fiber, 39 x 33.5 x 1.9 mm, Becker, U Series, Part# 300086	1	71
  94803000100	Sealing ring, Aluminium-Becker U Series, Part# 94803000100	5	62
  300155	Gasket, Buna, Becker U4.70 / U4.100 Series, Part# 300155	1	11
  00310126200	Cover Gasket, Becker U Series – Part # 00310126200	1	2
  00300226200	Cover Gasket, Becker U Series – Part # 00300226200		4
