Vane Kit, Becker, VTLF, VTLF 2.400, VTLF 2.500, Part# 90137301008 - vacstellar

Vane Kit, Becker, VTLF, VTLF 2.400, VTLF 2.500, Part# 90137301008 - vacstellar

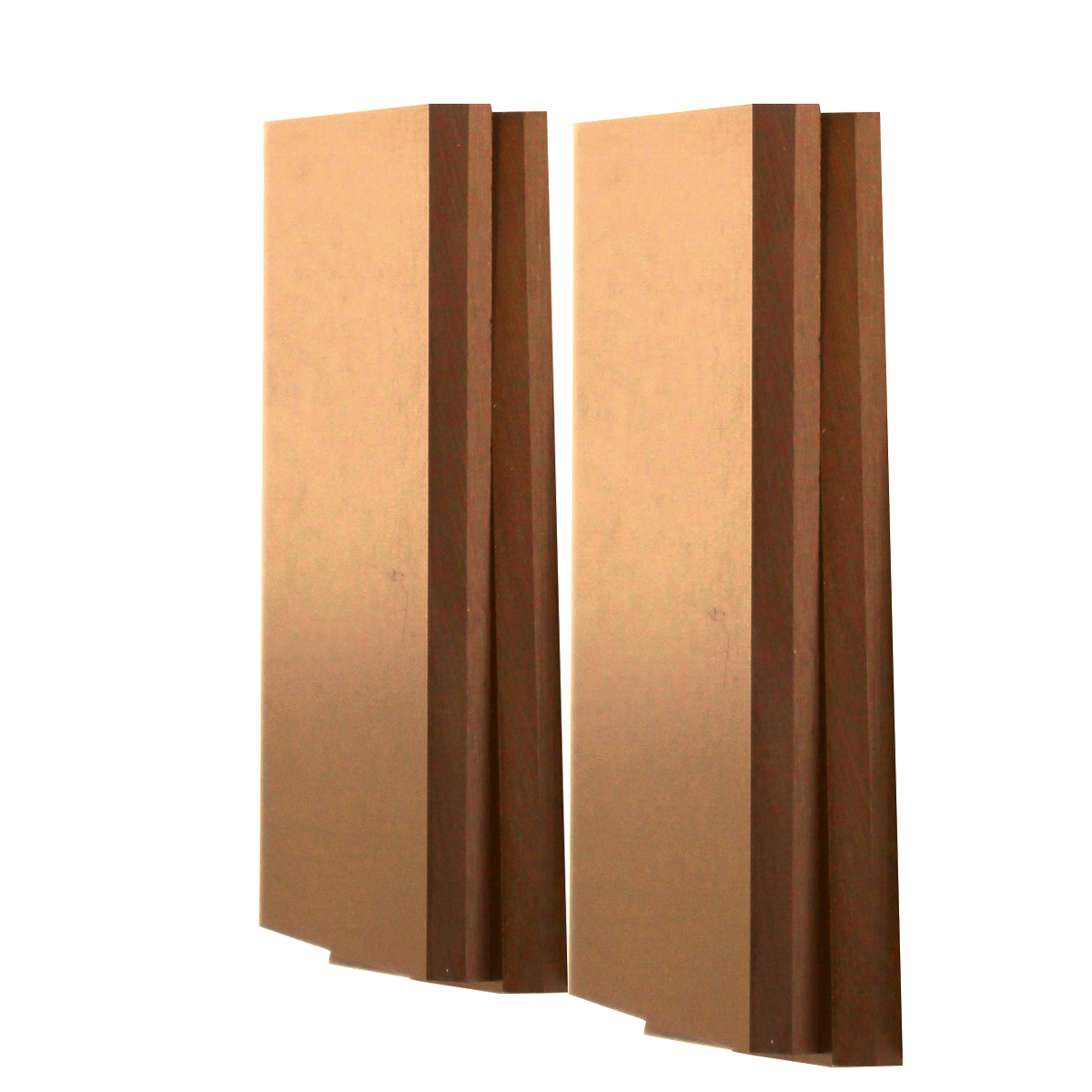

This kit (Part# 90137301008) contains eight Becker vanes . Each vane is made from high-grade carbon material. They are precisely cut to the correct dimensions: 220 mm long, 88 mm high, and 6.2 mm thick .
The WN number for this vane set is WN124-205 . The set comes with everything you need to replace all the vanes in your pump at once. It is always a good idea to replace the full set rather than just one or two. This keeps the wear even across all vanes.
|
|
|
0% |
|
|
|
0% |
|
|
|
0% |
|
|
|
0% |
|
|
|
0% |
Becker VTLF pump with this distance disc. It measures 45 mm outer diameter, 55 mm inner diameter, and 0.05 mm thick. Made for VTLF400, VTLF500, VTLF2.400, and VTLF2.500 pumps. This thin shim is a critical part for getting the rotor spacing exactly right during a rebuild.
Used on Becker VTLF 400, VTLF 500, VTLF 2.400, VTLF 2.500
protect your vacuum pump with this DF68 x 90 x 10 Shaft Sealing Ring. Made from durable Viton (FKM) , it handles high heat and harsh chemicals better than standard rubber. A perfect fit for industrial rotary shafts and Becker pump models.
This part is used in Becker VTLF series oil-free rotary vane pumps. Specifically:
Becker VTLF 2.200
Becker VTLF 2.250
Becker VTLF 250A
You will find it included in Becker repair kits 33803800000 (for VTLF 2.200/2.250) and 33804500-A0 (for VTLF 250A)
10 in stock
Becker VTLF dry vane pump sealed tight with this Suction Cover Gasket (Part# 300052200). This gasket creates a reliable seal for the suction cover (also called the inlet cover) on your pump. It prevents air leaks and maintains strong vacuum performance. It fits Becker VTLF 2.200, 2.250, 2.400, and 2.500 pump models . This gasket is included in the Becker VTLF 2.400/2.500 Gasket Kit . If you are doing a pump overhaul or replacing suction cover seals, this is the exact part you need.
10 in stock
Becker VTLF pump with this precision distance disc. It measures 0.030 inches thick. Made specifically for VTLF 2.400 and VTLF 2.500 pumps . This thin shim is a critical part for getting the rotor spacing exactly right during a rebuild.
Used on Becker VTLF 400, VTLF 500, VTLF 2.400, VTLF 2.500
Becker VTLF dry vane pump sealed tight with this Flange Gasket (Part# 790022500). This gasket creates a reliable seal at the flange connections on your pump, preventing air leaks and maintaining strong vacuum performance . It fits Becker VTLF 400, VTLF 500, VTLF 2.400, and VTLF 2.500 pump models . Four of these gaskets are included in the Becker VTLF 400/500 Gasket Kit . If you are doing a pump overhaul or replacing flange seals, this is the exact part you need.
This is the Piston Ring for Becker VTLF pumps (Part #91720020000) . It measures 68.3 mm outer diameter / 63.5 mm inner diameter x 3 mm thickness and conforms to DIN 34110 standards . This piston ring is used on Becker VTLF 2.400 and VTLF 2.500 vacuum pumps .
Becker VTLF dry vane pump sealed tight with this Exhaust Chamber Gasket (Part# 890052200). This gasket creates a reliable seal for the exhaust chamber on your pump, preventing air leaks and maintaining strong vacuum performance . It fits Becker VTLF 2.200, 2.250, 2.400, and 2.500 pump models . This gasket is included in the Becker VTLF 2.400/2.500 Gasket Kit . If you are doing a pump overhaul or replacing exhaust chamber seals, this is the exact part you need.
10 in stock
Kit Contents (Bill of Materials):
| Part Number | Description | Quantity |
|---|---|---|
| 90959700000 | Filter Cartridge for Becker VTLF | 1 |
| 90137301008 | Vane Kit for VTLF 2.400 / VTLF 2.500 (set of 8 carbon vanes) | 1 |
| 74330500000P | TA15/2 Grease, 50g Tube | 2 |
This is the Maintenance Kit for Becker VTLF 2.400 and VTLF 2.500 pumps (Part #338068M0000) . It includes everything you need for a complete pump tune-up: a Filter Cartridge (90959700000) , a Vane Kit (90137301008) , and two tubes of TA15/2 Grease (74330500000P) . This is a maintenance kit that keeps your pump running at peak performance.
