$873.60
10 in stock

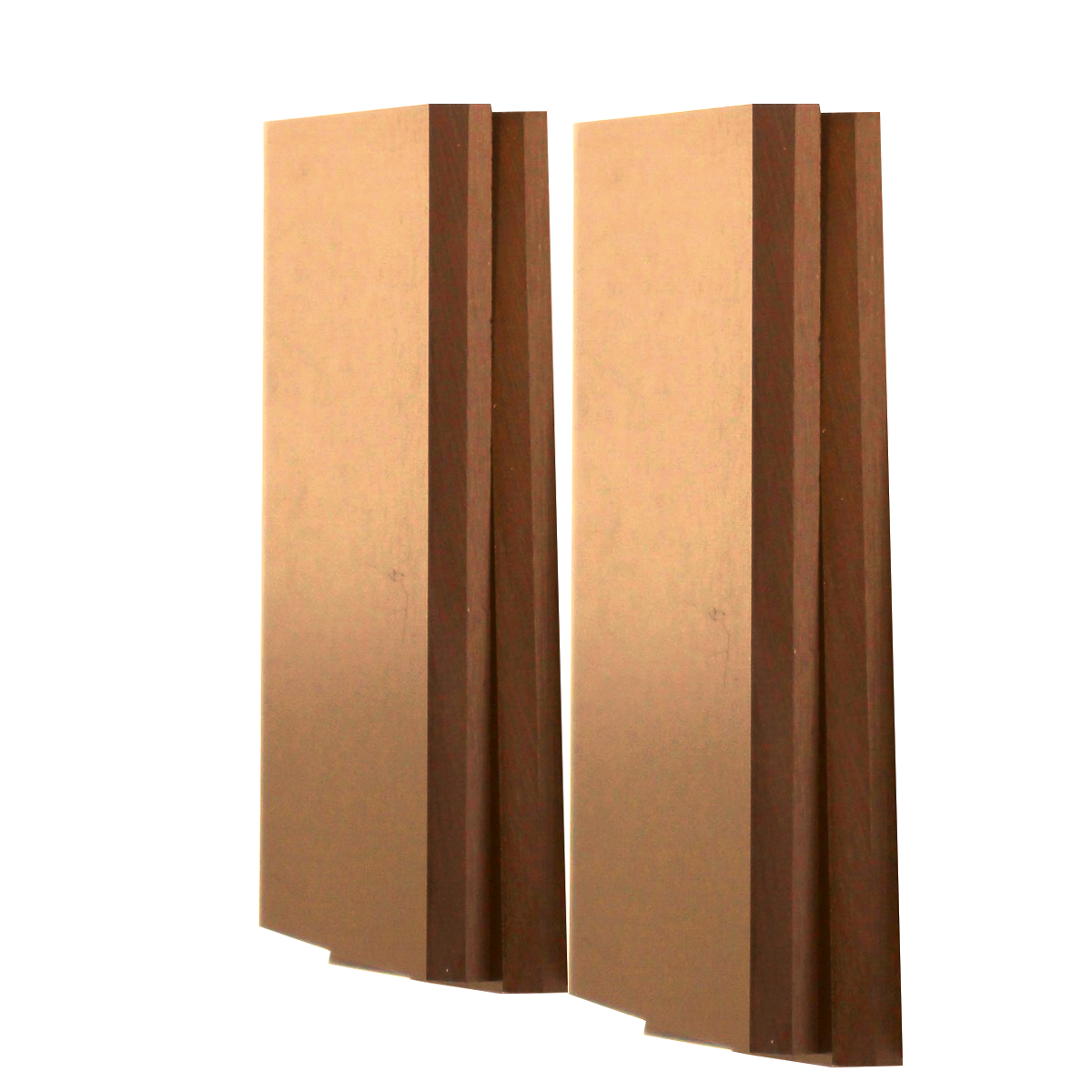

Vane Kit, Becker, VXLF, VXLF 2.400, VXLF 2.500, Part# 90132510080 - vacstellar
Vane Kit, Becker, VXLF, VXLF 2.400, VXLF 2.500, Part# 90132510080 - vacstellar
This vane kit uses carbon graphite material. It is chosen for good reasons. Carbon vanes have strong thermal resistance. That means they handle the heat from friction without breaking down. They also have good self-lubricating properties. The vanes create a fine dust that actually helps the pump run smoothly .
For Becker VXLF series pumps, these carbon vanes are specially engineered for long life. The VXLF series uses self-lubricating graphite composite vanes that do not need oil. That makes them cleaner and easier to maintain
|
|
|
0% |
|
|
|
0% |
|
|
|
0% |
|
|
|
0% |
|
|
|
0% |
10 in stock
10 in stock
10 in stock
Becker VTLF vacuum pump sealed tight with this Flange Gasket (Part #790022200). This genuine replacement part stops air leaks around the flange connection. It is made for VTLF 250 and VTLF 250A models. A simple, affordable fix to keep your pump running strong.
Becker VTLF dry vane pump sealed tight with this Suction Cover Gasket (Part# 300052200). This gasket creates a reliable seal for the suction cover (also called the inlet cover) on your pump. It prevents air leaks and maintains strong vacuum performance. It fits Becker VTLF 2.200, 2.250, 2.400, and 2.500 pump models . This gasket is included in the Becker VTLF 2.400/2.500 Gasket Kit . If you are doing a pump overhaul or replacing suction cover seals, this is the exact part you need.
Becker VTLF pump with this distance disc. It measures 45 mm outer diameter, 55 mm inner diameter, and only 0.025 mm thick. Made for VTLF400, VTLF500, VTLF2.400, and VTLF2.500 pumps. This ultra-thin shim is a critical part for getting the rotor spacing exactly right during a rebuild.
Used on Becker VTLF 400, VTLF 500, VTLF 2.400, VTLF 2.500
10 in stock
Becker VTLF dry vane pump sealed tight with this Exhaust Chamber Gasket (Part# 890052200). This gasket creates a reliable seal for the exhaust chamber on your pump, preventing air leaks and maintaining strong vacuum performance . It fits Becker VTLF 2.200, 2.250, 2.400, and 2.500 pump models . This gasket is included in the Becker VTLF 2.400/2.500 Gasket Kit . If you are doing a pump overhaul or replacing exhaust chamber seals, this is the exact part you need.
This is a pump body gasket for Becker vacuum pumps. It is made for the VTLF 2.400 and VTLF 2.500 models. A gasket is a simple seal. It sits between two metal parts. It stops air from leaking out. It also stops oil from leaking out. Without a good gasket, your pump will lose vacuum. It may also make a mess with oil. This gasket is a direct replacement. It fits just like the original Becker part. Change it when you do a rebuild or repair.
protect your vacuum pump with this DF68 x 90 x 10 Shaft Sealing Ring. Made from durable Viton (FKM) , it handles high heat and harsh chemicals better than standard rubber. A perfect fit for industrial rotary shafts and Becker pump models.
Kit Contents (Bill of Materials):
| Part Number | Description | Quantity |
|---|---|---|
| 90959700000 | Filter Cartridge for Becker VTLF | 1 |
| 90137301008 | Vane Kit for VTLF 2.400 / VTLF 2.500 (set of 8 carbon vanes) | 1 |
| 74330500000P | TA15/2 Grease, 50g Tube | 2 |
This is the Maintenance Kit for Becker VTLF 2.400 and VTLF 2.500 pumps (Part #338068M0000) . It includes everything you need for a complete pump tune-up: a Filter Cartridge (90959700000) , a Vane Kit (90137301008) , and two tubes of TA15/2 Grease (74330500000P) . This is a maintenance kit that keeps your pump running at peak performance.
